Sposób montażu
Oprawa
|
Rodzaj mocowania
mocowanie poziome
|
Projekt lampy
LED
|
Rodzaj lampy
LED
|
Napięcie [V]
24
|
Napięcie [V]
12
|
Strona zabudowy
Przód pojazdu
|
Wysokość [mm]
116
|
Funkcja lampy
ze światłem do jazdy dziennej (LED)
|
Rodzaj zabezpieczenia (kod IP)
IP5K9K
|
Liczba funkcji świateł
1
|
Rodzaj rejestracji
Sprawdzony zgodnie z SAE
|
spełnia wymagania Normy ECE
R10
|
Liczba diod LED
3
|
Kształt
okrągły
|
Kolor szkła reflektora
przezroczysty
|
Pobór mocy [W]
11
|
Zabezpieczenie przed błędnym podłączeniem biegunów
tak
|
Materiał szyby rozpraszającej
Tworzywo PC (Polycarbonat)
|
Montaż/demontaż koniecznie do wykonania przez fachowców!
|

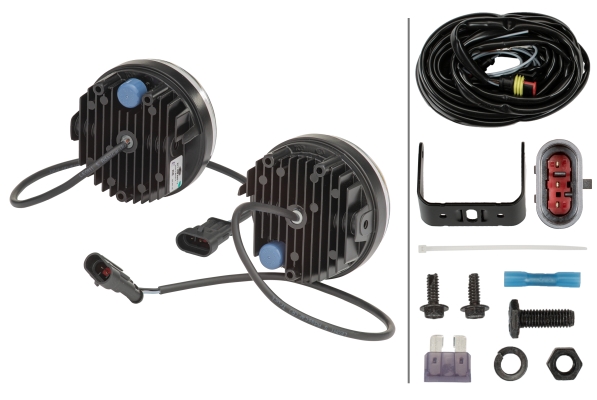

Symbol | Nazwa | Ilość |
8KA 165 959-001 | zestaw kabli | 1 |
Regarding single or double function lamps with LEDs withoutflasher functionIn connection with these low powers, which arevery different from bulb versions, there can beproblems during operation on various traction vehiclesbecause further lighting functions are detectedby some traction vehicles. This is a vehiclecomfort function which is not required by legislation anddoes not release drivers from their obligationto see for themselves that the lighting equipmentis working.Here, too, faulty diagnoses can be a result of the lowerpower levels involved (instrument panel in the driver cabindicates a bulb failure although the functionis working).The functional ability of these light failure checks canonly be established by the vehicle manufacturer.Operation of the light with alternating current or pulseddirect current is not permitted!The individual light functions may only be operated with avehicle fuse of max. 3A.In the case of onboard current limitation with the valuesspecified above by the onboard control unitan additional fuse for the lamp is not required.
